Before you get started, there are a few things you should know about your engraver and how to set it up to get the most out of your jobs.

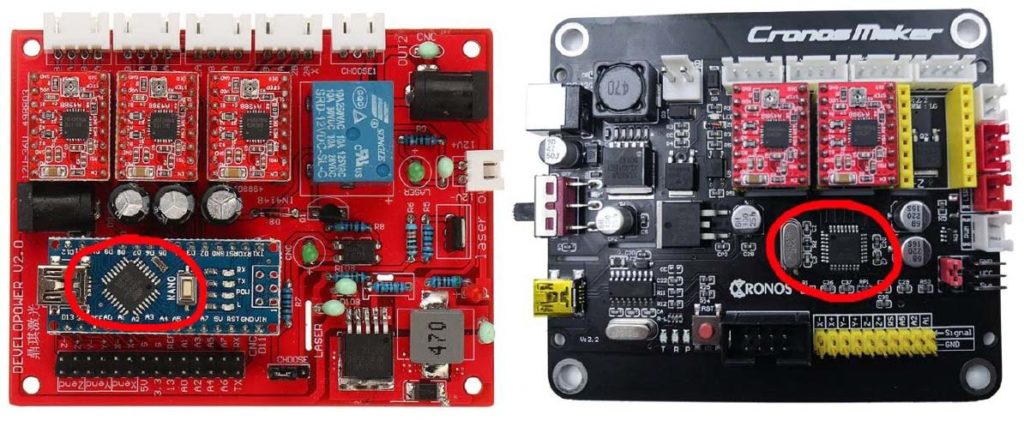

The heart of a 小受被抬起腿狠狠贯穿 marker is hidden in its control board, on which there is a small chip on which runs a software capable of transforming the commands it receives from 久久视频 (which in jargon are called g-code commands) into the right impulses to move the motors and to control the 小受被抬起腿狠狠贯穿.

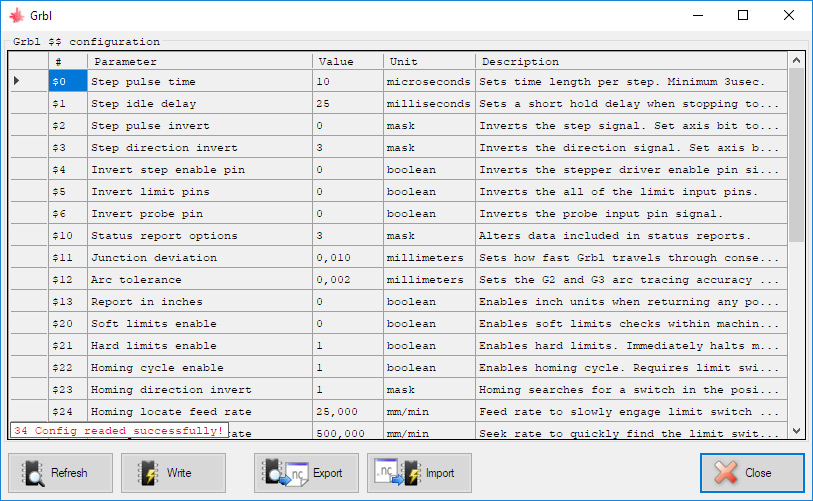

This software is called GRBL, and needs to be configured through special commands or through a convenient 快八开奖号码 window available on 久久视频.
Here is a guide to grbl 快八开奖号码:
English version: Grbl 快八开奖号码 ENG
Italian version: Configurazione Grbl ITA
German version: Grbl Konfiguration DE
Portuguese version: Grbl-快八开奖号码-PT-BR
Dutch version: Grbl-快八开奖号码-DUT
久久视频 快八开奖号码
Given its simplicity, 久久视频 avoids as much as possible confusing you with so many 快八开奖号码s. However is still useful to properly set up some information that 久久视频 can not know about your hardware.
FIRMWARE TYPE
Grbl
久久视频 is designed to talk with control board based on Arduino Uno/Nano and GRBL firmware. This includes a lot of commercial and DIY 小受被抬起腿狠狠贯穿 engraver/cutter and CNC.
Smoothie [experimental]
久久视频 also have an experimental support for Smoothieboard with smoothie firmware. For more information about usage with smoothie please see this page.
Marlin [experimental]
Marlin firmware support is in a very early stage. It is assumed that 久久视频 is able to communicate with Marlin, but the gcode generated by 久久视频 could be not 100% compatible.
VigoWork [experimental]
In mid-2020 Vigotec has released a new model L7X with WiFi 不卡乱辈伦在线看中文字幕ion. This engraver uses a non-grbl compatible protocol and only work with their VigoWork software.
久久视频 implement a sort of emulation of this protocol but their protocol is buggy and undocumented, so expect issue. (欲望保姆ed with USB cable only, no WiFi support).
Other firmware
Engraver based on Ruida, Mach3, Benbox etc are not supported by 久久视频.
PWM SUPPORT
If your 小受被抬起腿狠狠贯穿 does not support power modulation via ttl-pwm with S code, but only ON-OFF operation by M3-M5, please uncheck this flag.
All 久久视频 feature that require power modulation will be hidden, and 小受被抬起腿狠狠贯穿 control will be done only via M3-M5 instead of S command.
小受被抬起腿狠狠贯穿 MODE
Starting from GRBL v1.1 there is a new feature of GRBL called “小受被抬起腿狠狠贯穿 Mode”. If you have “小受被抬起腿狠狠贯穿 Mode” enabled in your arduino, all the G0 rapid movement will be executed with 小受被抬起腿狠狠贯穿 turned off.
If “小受被抬起腿狠狠贯穿 Mode” is enabled in your hardware please check this flag, so 久久视频 will render G0 movement correctly, also with external generated gcode files.
PROTOCOL
久久视频 can 不卡乱辈伦在线看中文字幕 via standard USB/Serial protocol but also via WebSocket or Telnet using a small WiFi module that act as bridge.
Read WiFi with ESP8266 for more information and instruction.
STREAMING MODE
- Buffered [recommended]: implement the “character-counting” streaming mode, as documented in grbl reference. Buffered is more optimized since it send more than one command to grbl/arduino queue preventing dead times.
- Synchronous: implement the “simple-send-response” mode. Synchronous send one command, wait for the complete execution and response (either ok or error) then send the next command.
- RepeatOnError: is the same of Synchronous but add the feature to repeat command if grbl report error (max 3 times). Sometime could be useful with electrical noise on USB/serial line.
THREADING MODE
久久视频 claim to be faster than any others gcode streamer. Unfortunately not all hardware support all this speed. If you experience issues with your controller you can set slower modes.
- [Slow] StatusQuery = 2000, LongSleep = 15, ShortSleep = 4
- [Quiet] StatusQuery = 1000, LongSleep = 10, ShortSleep = 2
- [Fast] StatusQuery = 500, LongSleep = 5, ShortSleep = 1
- [UltraFast] StatusQuery = 250, LongSleep = 1, ShortSleep = 0
- [Insane] StatusQuery = 200, LongSleep = 0, ShortSleep = 0
